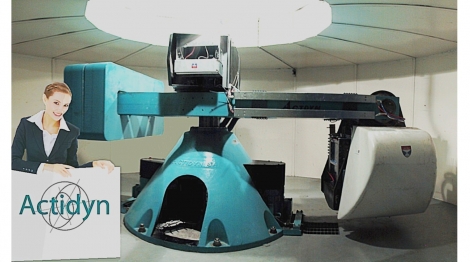

Geotechnical Centrifuges Modelling – C67 Series


Your C67 Geotechnical Centrifuge Modeling by ACTIDYN offers all the benefits of a C61 series model with the additional capacity to accelerate a payload of up to 1,500Kg to 100 times the earth gravitation or 500Kg to 130times the earth gravitation.

The basket provides an 0.8m wide by 1m long platform already allowing a Controlled Tool System or a Quake Simulator. This is made possible thanks to the long 3m radius ensuring a uniform field of acceleration over the surface of the platform.

With your ACTIDYN C67 Geotechnical Centrifuge Modeling you already able to simulate the behavior of large infrastructures such as dams and levees, unstable embankments, road tunnels or the response of buildings and structures to earthquakes within a limited budget.


General Characteristics

Series C67
Force (g x t) 150
Radius (m) 3.0
Basket Width (m) 0.9
Basket Length (m) 1.0
Basket Depth (m) 0.8
Maximum Acceleration (g) 130
Maximum Load Under Maximum Acceleration (kg) 500
Maximum Load (kg) 1,500
Maximum Acceleration Under Maximum Load (g) 100
Maximum Power Consumption under Maximum Acceleration (kW) 100
